10dBi High Gain Directional Cellular Anti Drone Antenna 2400-2500MHz Frequency

Name: 10dBi High Gain Directional Cellular Anti Drone Antenna 24002500MHz Frequency
Brand: flysafe
Price: 1 USD

China 10dBi High Gain Directional Cellular Anti Drone Antenna 2400-2500MHz Frequency factory

Place of Origin : Guangdong, China

Brand Name : flysafe

Price : Negotiable

Directional Antenna Frequency Range : 2400-2500MHz

Gain(dBi) : 10dBi

Dimensionsmm(Height/Width/Depth) : 320*70*16mm

Antenna weight(kg) : 0.4KG

MOQ : 1

Delivery Time : 7-15 work days

Payment Terms : LC, T/T

Contact Now

2400-2500MHz frequency 10dBi high gain directional antenna

Product Description

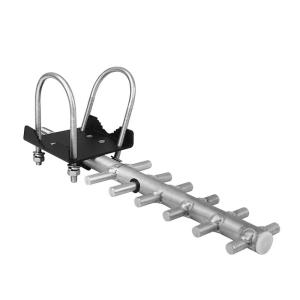

2400-2500MHz 10dBi Yagi Directional Antenna is designed for efficient signal transmission and reception in the 2400 - 2500MHz frequency band, this antenna has a high gain of 10dBi, which provides strong signal support for your wireless communication system and ensures a stable and reliable communication connection in both indoor and outdoor environments.2400-2500MHz The 10dBi Yagi directional antenna is suitable for wireless communication systems in the 2.4GHz band, such as Wi-Fi network coverage, wireless LAN extension, etc. It enhances signal coverage and signal quality. It can enhance signal coverage and signal strength, improve network stability and transmission speed.

Product Paramenters

Electrical Specifications
Directional Antenna Frequency Range	2400-2500MHz
Gain(dBi)	10dBi
VSWR	≤1.5
Polarization	vertical
Horizontal Beamwidth(0º)	55±10º
Vertical Beamwidth(0º)	30±10º
Front-to-back ratio(dB)	≥18
Input Impedance(Ω)	50Ω
Maximum input power(W)	100W
Input connector type	N-K
Lightning Protection	DC Ground
Mechanical Specifications
Dimensions-mm(Height/Width/Depth)	3207016mm
Packing size(mm)	Mm
Antenna weight(kg)	0.4K
Rated Wind Velocity(m/s)	31m/s
Operational Humidity(％)	10- 95
Radome Color	black
Radome material	aluminum
Operating temperature(ºC)	-40～55 º
Installation Method	Pole mounting
Mounting hardware(mm)	Φ30～Φ50mm

Details Images
