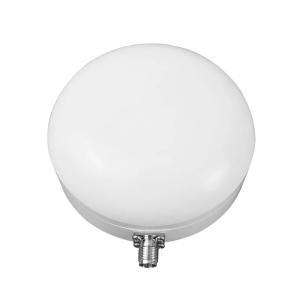

Multi Band Counter UAV Anti Drone Antenna 1.2GHz 1.5GHz 2.4GHz

Shenzhen Baohong intelligent manufacturing Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Multi Band Counter UAV Anti Drone Antenna 1.2GHz 1.5GHz 2.4GHz

Place of Origin : Guangdong, China

Brand Name : flysafe

Price : Negotiable

Frequency Range : 1.2GHz/1.5GHz/2.4GHz (customized)

Gain(dBi) : ≥6dB

VSWR : ≤1.5

Polarization : right-handed circular polarization

Operate current : 2.8A

ovality(dB) : ≤±2dB

Input Impedance(Ω) : 50Ω

Output frequency : ≥10W

Input connector type : TNC-K,Side entry cable

MOQ : 1

Delivery Time : 7-15 work days

Payment Terms : LC, T/T

Contact Now

1.2GHz/1.5GHz/2.4GHz multi-band UAV counter antenna

Product Description

This 1.2GHz 1.5GHz 2.4GHz Right Hemisphere Circularly Polarized Antenna is a high performance multi-band antenna that operates in the 1.2GHz, 1.5GHz and 2.4GHz bands. It adopts advanced technology and design concepts to provide stable and efficient signal transmission solutions for wireless communication systems. Whether it is in satellite communication, wireless LAN, mobile communication or other applications that require circularly polarized antennas, it can play an excellent role. This 1.2GHz 1.5GHz 2.4GHz Right Handed Hemisphere Circularly Polarized Antenna can cover three frequency bands at the same time: It can cover three frequency bands at the same time, 1.2GHz, 1.5GHz and 2.4GHz, so it can be widely used in a variety of wireless communication systems. In satellite communication systems, it can be used to receive and transmit satellite signals. Due to its multi-frequency band coverage and circular polarization characteristics, it can adapt to the requirements of different frequency bands and polarization modes in satellite communication to ensure a stable signal link.

Product Paramenters

Electrical Specifications
Frequency Range
1.2GHz 1.5GHz 2.4GHz (customized)
Gain(dBi)
≥6dB
VSWR
≤1.5
Polarization
right-handed circular polarization
Operate current
2.8A
ovality(dB)
≤±2dB
Input Impedance(Ω)
50Ω
Output frequency
≥10W
Input connector type
TNC-K,Side entry cable
Mechanical Specifications
Dimensions­ mm(Height/Width/Depth)
φ120×H 52.5(mm)
Antenna weight(kg)
0.284KG
Radome Color
White
Material
ABS
Operating temperature(ºC)
-40℃~+60℃
Installation Method
threaded connection

Details Images

Multi Band Counter UAV Anti Drone Antenna 1.2GHz 1.5GHz 2.4GHz

Multi Band Counter UAV Anti Drone Antenna 1.2GHz 1.5GHz 2.4GHz
Multi Band Counter UAV Anti Drone Antenna 1.2GHz 1.5GHz 2.4GHz
Multi Band Counter UAV Anti Drone Antenna 1.2GHz 1.5GHz 2.4GHz
