3dbi Omnidirectional Anti Drone Antenna High Gain For 2.4GHz Wireless Communication

Name: 3dbi Omnidirectional Anti Drone Antenna High Gain For 24GHz Wireless Communication
Brand: flysafe
Price: 1 USD

China 3dbi Omnidirectional Anti Drone Antenna High Gain For 2.4GHz Wireless Communication factory

Place of Origin : Guangdong, China

Brand Name : flysafe

Price : Negotiable

Frequency Range : Frequency Range 2400-2500 MHz

Antenna weight(kg) : 0.136KG

Dimensionsmm(Height/Width/Depth) : diameter32*149mm

Maximum input power(W) : 50W

MOQ : 1

Delivery Time : 7-15 work days

Payment Terms : LC, T/T

Contact Now

Maximum input power 50W 3dbi omnidirectional antenna for 2.4GHz wireless communication

Product Description

700-1050MHZ 3.5dBi Black Fatty Omni Antenna is an innovative product designed for the shortcomings of Comans fiberglass antenna, such as high energy consumption, which combines the performance of the classic Broden antenna, wider antenna, higher sensitivity, better heat dissipation, widely used in many kinds of drone signal jammers, the customer can choose the right one according to the actual situation. frequency band. Compared with traditional antennas, it has the same weight and higher power. We provide personalized customization, such as range band 700-1050MHz, gain 3.5±0.5dBi, length 23.5cm, achieving high power and low consumption.

Product Paramenters

Electrical Specifications
Frequency Range	2400-2500 MHz
Gain(dBi)	3±0.5dBi
VSWR	≤1.5
Polarization	vertical
Horizontal Beamwidth(0º) Vertical Beamwidth(0º)	360º 55±5º
ovality(dB)	≤±2dB
Input Impedance(Ω)	50Ω
Maximum input power(W)	50W
Input connector type	N-K
Lightning Protection	DC Ground
MechanicalSpecifications
Dimensionsmm(Height/Width/Depth)	ɸ32*149mm
Antenna weight(kg)	0.136KG
Rated Wind Velocity(m/s)	60m/s
Operational Humidity(％)	10- 95
Radome Color	black
Radome material	glass fiber reinforced plastics
Operating temperature(ºC)	-40～55º
Installation Method	Machine installation

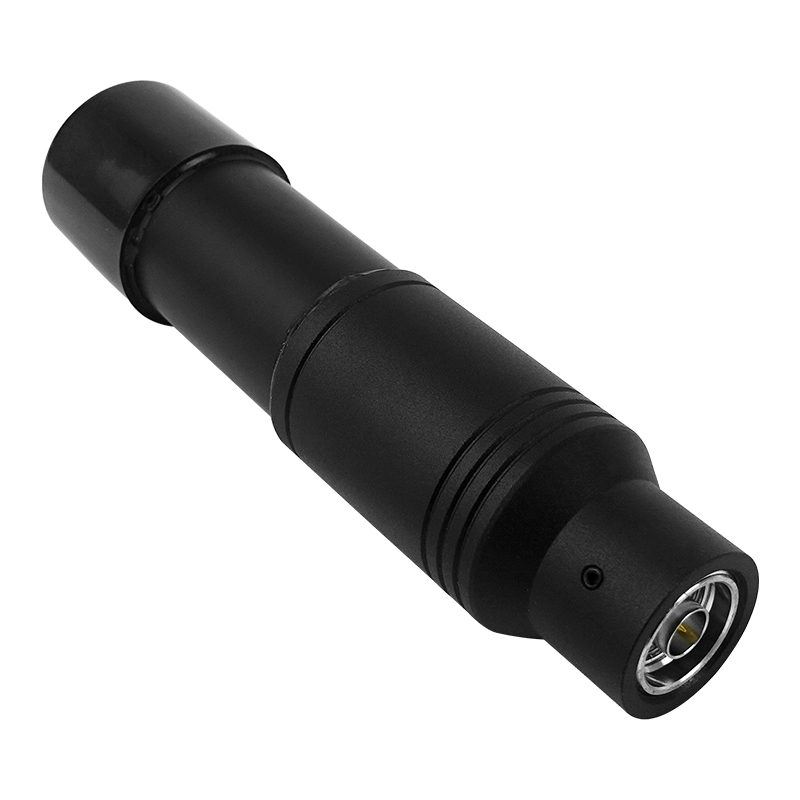

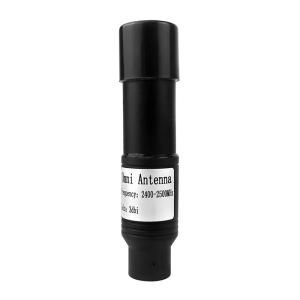

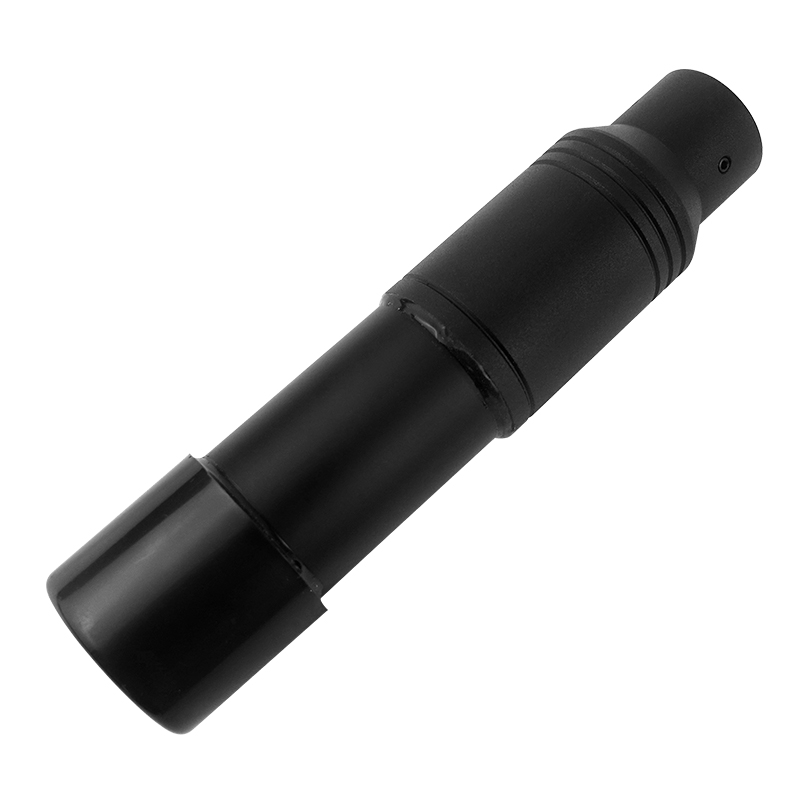

Details Images

3dbi Omnidirectional Anti Drone Antenna High Gain For 2.4GHz Wireless Communication
