RF Power Amplifier Signal Jammer Module 30W 24V-28V

Name: RF Power Amplifier Signal Jammer Module 30W 24V28V
Brand: flysafe
Price: 1 USD

China RF Power Amplifier Signal Jammer Module 30W 24V-28V factory

Brand Name : flysafe

Place of Origin : Guangdong, China

MOQ : 1

Price : Negotiable

Delivery Time : 5-8 work days

Payment Terms : LC,T/T,MoneyGram,Western Union,D/P,D/A,L/C

Frequency : Customized

Work Temperature : -40~+85 ℃

Max Output Power : 30 W

Work Voltage : 24-28 V

Max Gain : 45 dB

Flatness : ±1 dB

Max Current : 4 A

Output VSWR : ≤1.5

Output Connector : SMA/F 50Ω

Power Amplifier Efficiency : 45（when Max Output）

Switch Control : 0V off /0.6 on

Standing Wave Protection : OK

Temperature Protection : 75 ℃

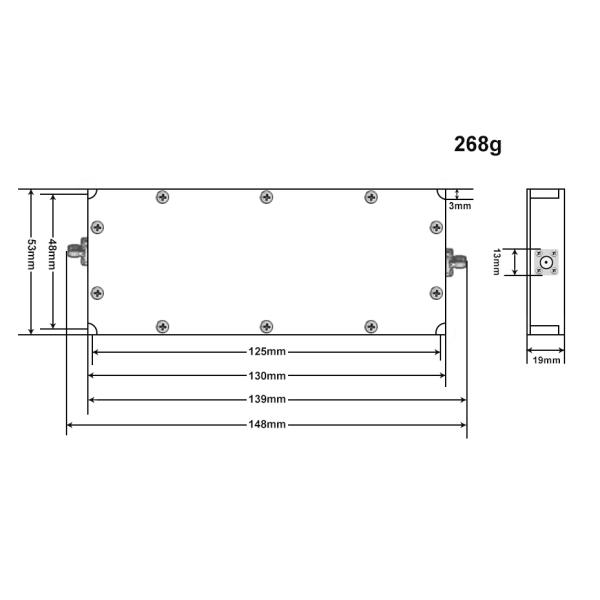

Size : 139*53*19 mm

Weight : 0.268 Kg

Contact Now

Product Parameters

Frequency	Customized
Work Temperature	-40~+85 ℃
Max Output Power	30 W
Work Voltage	24-28 V
Max Gain	45 dB
Flatness	±1 dB
Max Current	4 A
Output VSWR	≤1.5
Output Connector	SMA/F 50Ω
Power Amplifier Efficiency	45(when Max Output)
Switch Control	0V off /0.6 on
Standing Wave Protection	OK
Temperature Protection	75 ℃
Size	1395319 mm
Weight	0.268 Kg

Product Description

The 30 Watt RF Power Amplifier Module is used to amplify RF signals in a variety of applications including communications, radar systems, and RF testing. The module has a maximum RF output power of 30 watts. It can operate under certain environmental conditions such as temperature and humidity. It supports a wide frequency range and can accommodate a variety of RF signals. It has a small form factor and is easy to integrate into different systems.

RF Power Amplifier Signal Jammer Module 30W 24V-28V
